型号参数

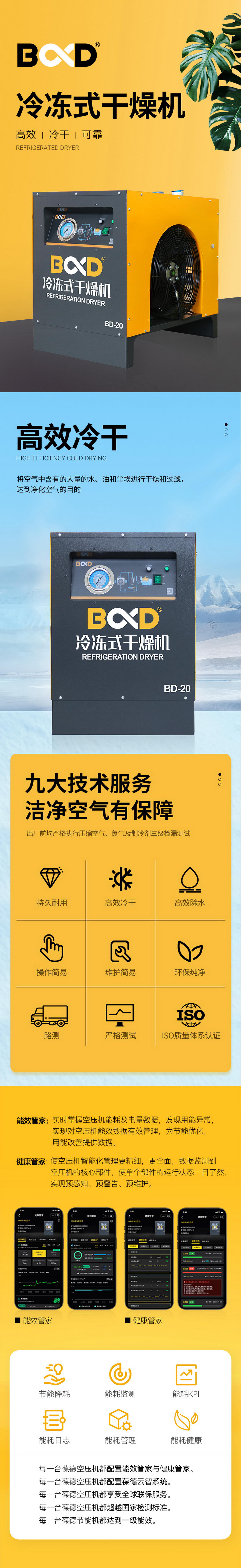

产品参数（冷干机）｜BD-10~200
| 型号 | 空气处理量m³/min | 压缩机功率HP | 电源V/50Hz | 空气接管管径 | 外形尺寸LxWxH(mm) | 重量kg |
|---|---|---|---|---|---|---|
| BD-10 | 1.8 | 0.91 | 220 | DN20(G3/4) | 550x385x530 | 39 |
| BD-20 | 2.8 | 1.2 | 220 | DN25(G1) | 600x405x580 | 42 |
| BD-30 | 3.8 | 1.2 | 220 | DN25(G1) | 704x430x630 | 42 |
| BD-60 | 6.88 | 1.62 | 220 | DN40(G1 1/2) | 825x485x680 | 72 |
| BD-100 | 11.5 | 3.18 | 220 | DN50(G2) | 1100x600x1010 | 133 |
| BD-120 | 14 | 3.48 | 380 | DN65(G2 1/2) | 1100x650x1145 | 145 |
| BD-150 | 16.8 | 4.84 | 380 | DN65(G2 1/2) | 1200x700x1220 | 158 |
| BD-200 | 22.8 | 5 | 380 | DN80(F3) | 1450x700x1335 | 217 |
冷冻式干燥机(风冷型)｜BD-015AH~850AH
| 型号 | 空气处理量(Nm³/min) | 制冷功率(kW) | 电源(V/Hz) | 管径(inch/DN) | 外形尺寸-长(mm) | 外形尺寸-宽(mm) | 外形尺寸-高(mm) | 匹配空压机功率(kW) | 重量(kg) |
|---|---|---|---|---|---|---|---|---|---|
| BD-015AH | 1.5 | 0.59 | 220/50 | R1" | 730 | 420 | 770 | 7.5 | 61 |
| BD-020AH | 2 | 0.59 | 220/50 | R1" | 730 | 420 | 770 | 11 | 61 |
| BD-026AH | 2.6 | 0.75 | 220/50 | R1" | 730 | 420 | 800 | 15 | 68 |
| BD-038AH | 3.8 | 0.88 | 220/50 | R1 1/2" | 780 | 540 | 1010 | 22 | 102 |
| BD-069AH | 6.9 | 1.23 | 220/50 | R1 1/2" | 1000 | 540 | 1010 | 37 | 138 |
| BD-110AH | 11 | 1.98 | 220/50 | R2" | 1240 | 650 | 1140 | 55 | 205 |
| BD-140AH | 14 | 2.68 | 380/50 | R2 1/2" | 1240 | 650 | 1140 | 75 | 215 |
| BD-180AH | 18 | 3.1 | 380/50 | R2 1/2" | 1400 | 700 | 1260 | 90 | 283 |
| BD-220AH | 22 | 3.65 | 380/50 | DN80 | 1450 | 700 | 1340 | 110 | 324 |
| BD-280AH | 28 | 4.54 | 380/50 | DN80 | 1450 | 700 | 1340 | 150 | 358 |
| BD-320AH | 32 | 5.43 | 380/50 | DN80 | 1550 | 750 | 1400 | 160 | 408 |
| BD-380AH | 38 | 5.81 | 380/50 | DN100 | 1900 | 1050 | 1620 | 200 | 585 |
| BD-460AH | 46 | 6.75 | 380/50 | DN100 | 1900 | 1050 | 1620 | 250 | 630 |
| BD-550AH | 55 | 9 | 380/50 | DN125 | 2100 | 1000 | 1790 | 315 | 815 |
| BD-670AH | 67 | 10.1 | 380/50 | DN125 | 2100 | 1400 | 2060 | 355 | 1106 |
| BD-750AH | 75 | 11.3 | 380/50 | DN125 | 2100 | 1450 | 2200 | 400 | 1223 |
| BD-850AH | 85 | 13.62 | 380/50 | DN150 | 2100 | 1550 | 2300 | 450 | 1685 |
冷冻式干燥机(水冷型)｜BD-140WH~3700WH
| 型号 | 空气处理量(Nm³/min) | 制冷功率(kW) | 空气出入口(inch/DN) | 冷却水量(t/h) | 冷却水管径(inch/DN) | 外形尺寸-长(mm) | 外形尺寸-宽(mm) | 外形尺寸-高(mm) | 匹配空压机功率(kW) | 重量(kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| BD-140WH | 14 | 2.68 | R2 1/2" | 3.6 | R1" | 1240 | 650 | 1140 | 75 | 215 |
| BD-180WH | 18 | 3.1 | R2 1/2" | 3.9 | R1" | 1400 | 700 | 1260 | 90 | 283 |
| BD-220WH | 22 | 3.65 | DN80 | 4.2 | R1" | 1450 | 700 | 1340 | 110 | 324 |
| BD-280WH | 28 | 4.54 | DN80 | 5.4 | R1" | 1450 | 700 | 1340 | 150 | 358 |
| BD-320WH | 32 | 5.43 | DN80 | 6 | R1 1/2" | 1550 | 750 | 1400 | 160 | 408 |
| BD-380WH | 38 | 5.81 | DN100 | 6.7 | R1 1/2" | 1900 | 1050 | 1620 | 200 | 585 |
| BD-460WH | 46 | 6.75 | DN100 | 9 | R1 1/2" | 1900 | 1050 | 1620 | 250 | 630 |
| BD-550WH | 55 | 9 | DN125 | 10.8 | R2" | 2100 | 1000 | 1790 | 315 | 858 |
| BD-670WH | 67 | 10.1 | DN125 | 13.5 | R2" | 2100 | 1400 | 2060 | 355 | 1106 |
| BD-750WH | 75 | 11.3 | DN125 | 15 | R2" | 2100 | 1550 | 2200 | 400 | 1223 |
| BD-850WH | 85 | 13.62 | DN150 | 18 | R2" | 2100 | 1550 | 2300 | 450 | 1685 |
| BD-950WH | 95 | 13.62 | DN150 | 19.5 | R2" | 2250 | 1700 | 2450 | 500 | 2105 |
| BD-1100WH | 110 | 18.0* | DN150 | 22.5 | R2 1/2" | 2500 | 1750 | 2200 | 630 | 2326 |
| BD-1300WH | 130 | 20.2* | DN200 | 25.5 | R2 1/2" | 2500 | 1900 | 2300 | 720 | 2500 |
| BD-1500WH | 150 | 22.6* | DN200 | 28.5 | R2 1/2" | 2800 | 1900 | 2300 | 800 | 2680 |
| BD-1700WH | 170 | 27.2* | DN200 | 31.5 | R3" | 3000 | 2000 | 2150 | 900 | 2854 |
| BD-2300WH | 230 | 37.5 | DN250 | 45 | R3" | 3300 | 2200 | 2350 | 1200 | 3896 |
| BD-2900WH | 290 | 45 | DN250 | 54 | DN100 | 3800 | 2200 | 2450 | 1500 | 4104 |
| BD-3700WH | 370 | 52.5 | DN300 | 63 | DN100 | 4200 | 2300 | 2500 | 2000 | 4988 |
