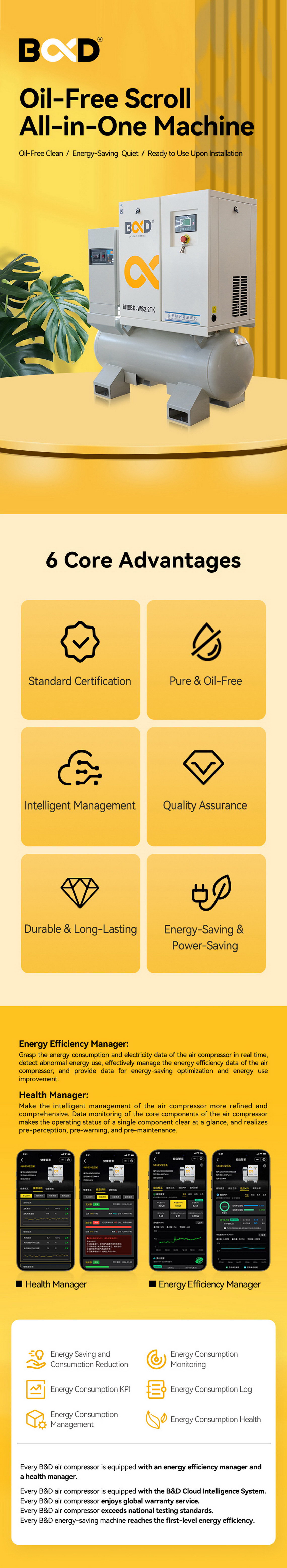

BD-WS oil-free scroll air compressor
Food, medical care, new energy, oxygen tank, laboratory, printing
Fields such as chemical engineering and precision coating.
Easy to install, small in size and space-saving, ready to use immediately after installation.
It features few vulnerable parts, high reliability, small torque variation and smooth operation.
The operation is simple and easy to achieve automation.
100% oil-free certification, continuous and stable air transmission, reliable operation, and clean gas source.
Communicate bottom price
After submission, a sales manager will be assigned to provide dedicated service for you
WhatsApp: +86 189 2777 0788
Tel: +86 757 8739 8111
Parameters
| Pressure range | 0.65-0.8 mpa |
| Power range | 3.7 to 7.5 kW |
| Displacement | 0.4-0.8 m³/min |
| Power supply | 380V |
| Startup mode | Variable frequency or power frequency |
| Ambient temperature | - 5 ~ + 40 ℃ |
| Exhaust temperature | ≈ Ambient temperature +15℃ |
| Cooling method | Air-cooled |
| 100% oil-free, TUV oil-free certification |
|
